Eliminating Multiple Setups with 5-Axis Machining
Understanding the 5-axis machining process and its impact on workflow
Five axis CNC machines let cutting tools move freely along all five axes at once, which means they can reach parts from almost every possible direction. No more stopping the machine mid job to manually adjust positions either something that used to involve shutting down operations, setting everything back up again, and dealing with potential misalignment issues. Keeping everything in one setup cuts down on those annoying workflow breaks by around 63 percent when compared with older three axis systems. Machining reports from last year back this up, showing significant time savings for shops making complex components.
Reduction in setup time and number of operations through integrated positioning
Old school 3-axis machining usually needs several setups to get at all sides of a complicated part. We're talking anywhere from 4 to 6 setups for really intricate components. And each time they stop and reposition, it eats up about 30 to 45 minutes not actually cutting metal. That adds up fast when making something like an aerospace part where we see roughly 165 minutes lost just in setup alone. Now look at what happens with 5-axis machines. These bad boys can handle most parts in just 1 or 2 setups, bringing down that wasted time to around an hour total. The magic comes from those built-in positioning systems that tweak the angle automatically as needed. This lets machinists keep going without stopping for those tricky curves and odd angles. Take one major aerospace company as proof. They managed to go from needing five separate setups for turbine blades down to just one single setup. The result? A massive 37% reduction in their overall production time.
How automation in 5-axis CNC reduces human error during transitions
When workers manually position parts, they tend to introduce alignment problems somewhere around once every eight setups according to recent industry data from Machinery Efficiency Report last year. Five axis machines cut down on these issues because they handle the tool path changes and rotate workpieces automatically. Most modern systems come equipped with collision detection features that keep everything moving smoothly across all axes. Some manufacturers report cutting waste by nearly 30% in sectors where precision matters most, such as when making medical devices. While automated processes definitely boost accuracy, there's still some learning curve involved for operators who need to manage several machines at once instead of focusing on just one setup.
Improving Part Accuracy and Surface Quality

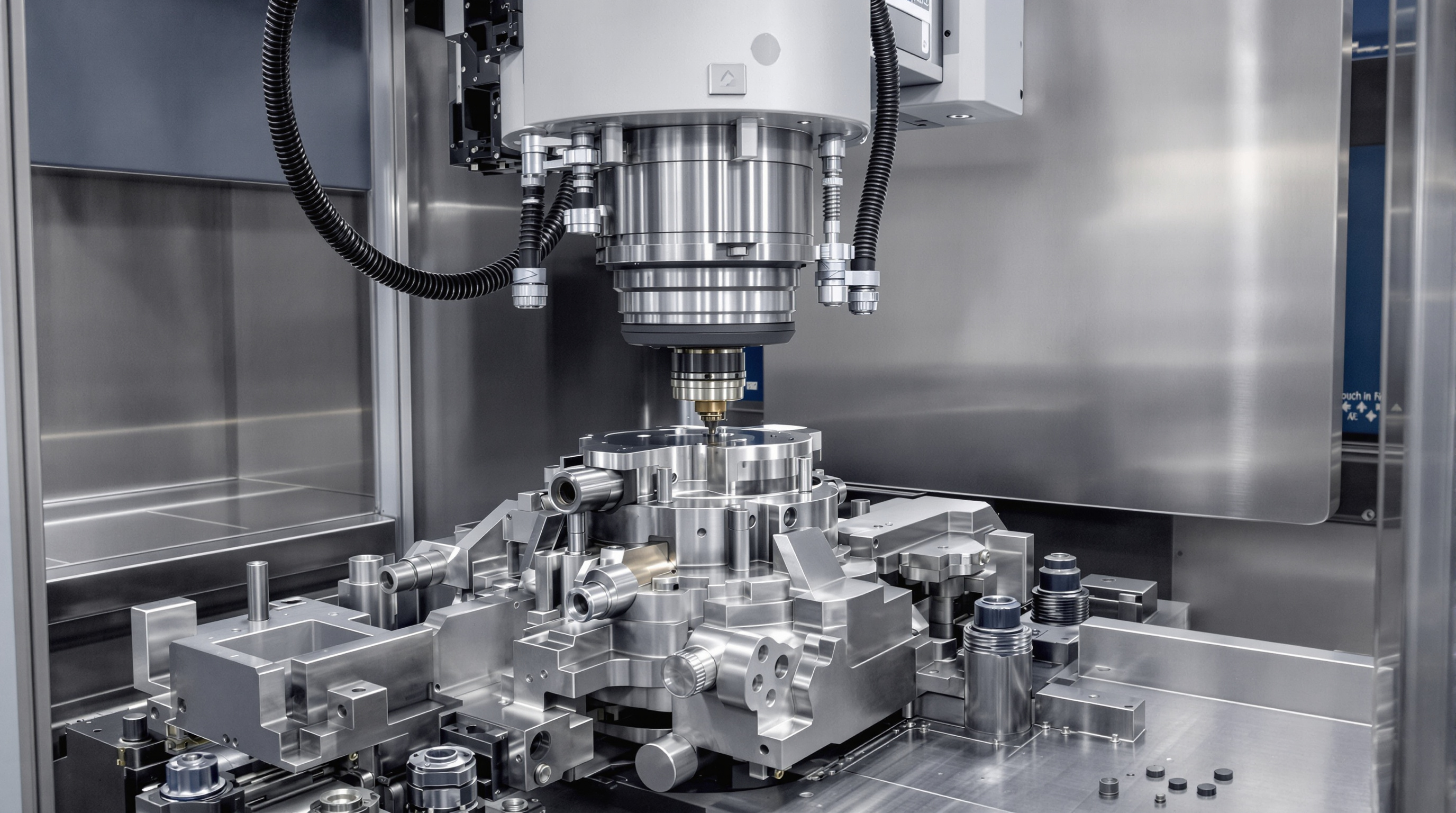

5-axis machining elevates precision manufacturing by enabling continuous tool engagement with complex geometries. This capability minimizes operator interventions while maintaining ±0.005 mm tolerances, critical for aerospace and medical components such as turbine blades or orthopedic implants.
Enhanced Precision and Reproducibility in Complex Geometries
Unlike 3-axis machines that require repositioning, 5-axis systems maintain optimal cutting angles during contouring operations. A helical toolpath can machine a turbine blade’s airfoil in one setup—reducing dimensional variances by 18% compared to multi-stage processes.
Achieving Tighter Tolerances Through Improved Toolpath Control
Advanced CAM software optimizes tool orientation to prevent deflection, particularly in deep-pocket milling. By keeping the tool perpendicular to curved surfaces, 5-axis systems reduce chord errors in arcs by 32% while ensuring consistent surface quality across production batches.
Data Insight: Surface Finish Improvements up to 40% Compared to 3-Axis Systems
The ability to maintain ideal chip load and cutting speed across compound angles reduces tool marks and post-processing needs. Automotive manufacturers report Ra (roughness average) values below 0.8 μm for 5-axis-machined transmission housings—a 40% improvement over conventional 3-axis results.
Consolidating Manufacturing Operations for Greater Efficiency
Integration of Turning and Milling Operations in 5-Axis Systems
The latest 5-axis machining setups bring together turning and milling functions, allowing shops to run multiple operations without switching machines. No more moving parts back and forth between lathes and mills means fewer alignment problems overall. According to recent industry data from Machinery Trends in their 2024 report, this setup cuts down alignment issues by around 30 percent. For those tricky parts that need both rotation and straight cutting paths, these systems handle everything in a single clamp. This saves time and money while avoiding the kinds of errors that happen when parts get handled too much during traditional manufacturing processes.
Streamlining Production with Fewer Machine Transfers and Fixtures
Aerospace companies working with 5-axis systems have seen their need for fixtures drop by around half when making turbine blades. This reduction means fewer setups overall, which cuts down on both how long things take to produce and what they cost in tools. Take one car parts maker as an example they managed to shave off about 22% from each part's production time simply because there were less transfers between machines. What makes this approach so good is that it keeps parts from getting damaged during those constant clamping steps, all while keeping position accuracy within just 5 microns or better. For shops dealing with tight tolerances, these kinds of improvements make a real difference in day to day operations.
Trend: Adoption of Hybrid 5-Axis Machines for High Production Efficiency
More companies across manufacturing sectors are turning to hybrid 5-axis systems that combine traditional machining with additive manufacturing capabilities for creating parts that require minimal post-processing. These integrated platforms cut down on the number of steps needed to finish a component, sometimes as much as 40% less than what was typical before. A real world case study from a medical device firm shows how these systems can save money too - they saw around 15% lower labor expenses when their machines started handling tool changes automatically and using single programming setups instead of multiple ones. What's really interesting though is the trend towards machines that calibrate themselves. This development has made production lines run smoother between batches, cutting waiting periods by approximately 18% according to recent data. Manufacturers are finding these improvements not just cost effective but also essential for keeping up with modern production demands.
Reducing Lead Times Through Setup and Fixturing Optimization

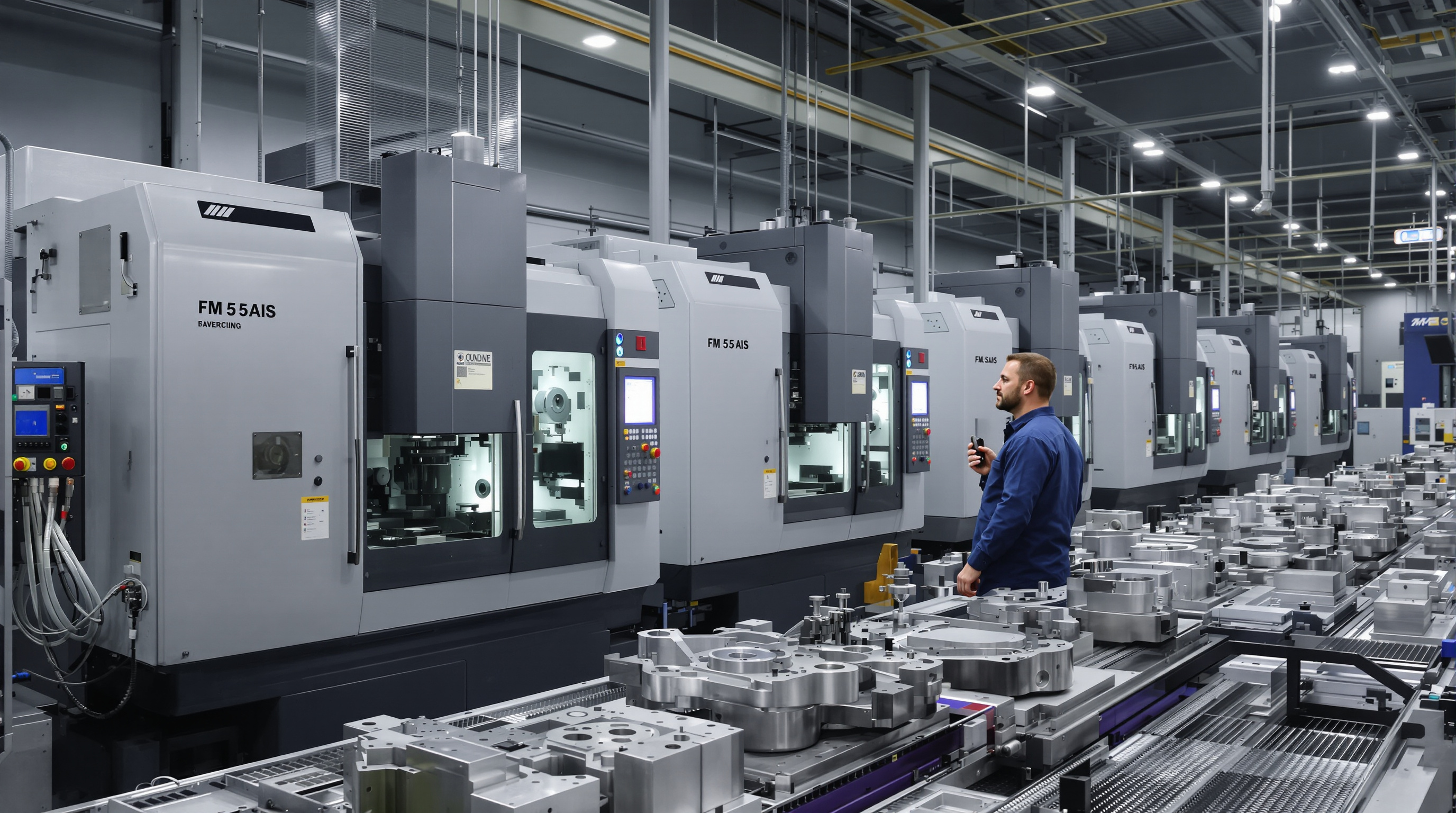

Minimizing Fixturing Complexity Through Dynamic Workpiece Orientation
The complexity of fixturing gets cut down quite a bit when we talk about 5 axis machining because the machine actually moves the part around while it's working on it. Traditional 3 axis systems need all sorts of special fixtures every time they change how a part is positioned, but these newer machines have that extra movement capability across two more axes. According to some research from AMT back in 2023, shops can eliminate roughly between 60 and 80 percent of those fixtures when dealing with complicated shapes. Take turbine blades as just one case study here. These used to take something like twelve separate setups on older equipment, but now manufacturers are getting away with just one to three setups thanks to universal vises that work across different angles.
Cost and Time Savings From Reduced Clamping Requirements
Simpler fixturing directly reduces labor hours and material waste:
- Clamping time reduction: 50–70% faster per part (IMTS 2024 Tooling Efficiency Report)
- Fixture costs: $2,500–$15,000 saved per complex project by avoiding custom jigs
Precision rotary tables maintain positional accuracy within 5 microns during dynamic repositioning, eliminating manual measurement steps between operations.
Reduction in Lead Time With 5-Axis Machining Due to Consolidated Processes
When companies combine drilling, milling, and finishing all in one setup, they typically see their production cycles shrink by somewhere between 30 to 60 percent. The aerospace industry has seen some impressive results too. One manufacturer cut down on wait times dramatically when switching to 5 axis systems. For those really important parts needed for flights, what used to take two weeks now gets done in just over a week. And there's even more savings when looking at how tools move around during production. A test run by Haas Automation showed that optimizing these paths can speed things up by about 15 to 20 percent simply because machines spend less time moving without actually working on materials.
FAQ Section
What is 5-axis machining?
5-axis machining allows cutting tools to move along five different axes simultaneously, enabling the machining of complex shapes from virtually any direction.
How does 5-axis machining reduce setup times?
By allowing most parts to be machined in just one or two setups, 5-axis machining significantly reduces the need for manual repositioning, thereby cutting down setup times and overall production costs.
Why is 5-axis CNC considered more accurate?
5-axis CNC machines use advanced CAM software to optimize tool paths and maintain tolerances, ensuring higher precision and consistent surface quality in complex geometries.
How does 5-axis machining impact lead times?
By minimizing fixturing complexity and integrating multiple operations in a single setup, 5-axis machining substantially reduces production lead times.
