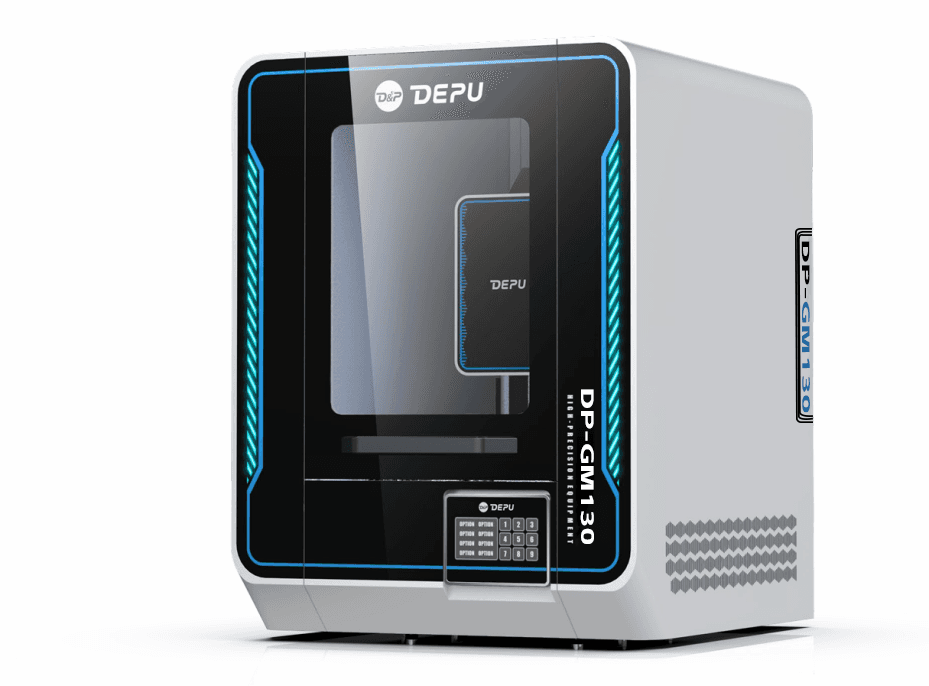

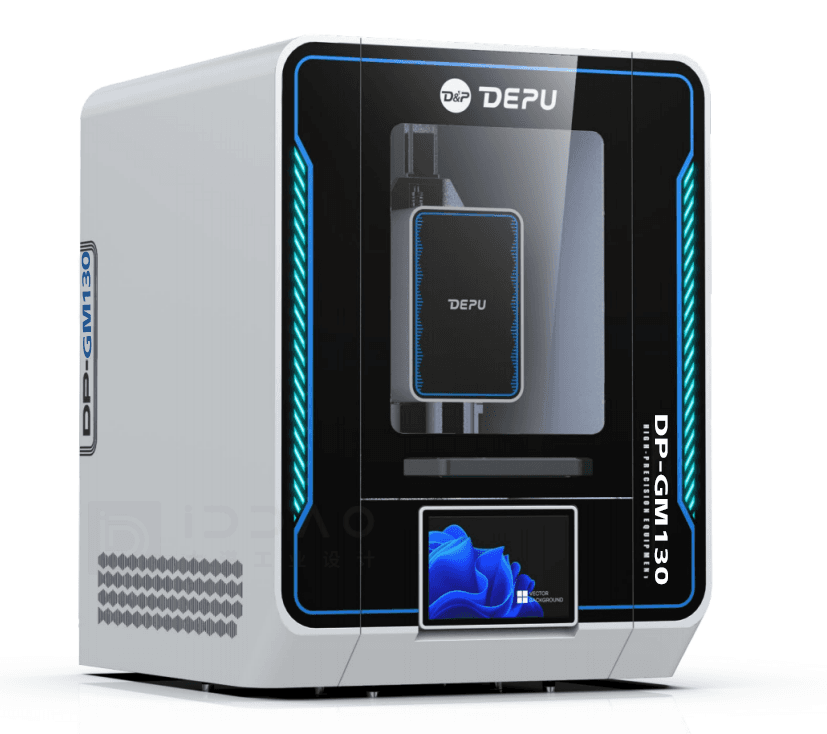

GM130 5-axis Micro Machining Center
5-Axis micro machining center
The GM130 brings true 5-axis simultaneous micro-machining to a compact desktop footprint. Engineered with a rigid cast-iron body, ZEISS-verified 0.01 mm precision, and integrated in-machine probing, it effortlessly masters complex micro-geometries in a single setup.
See the full specification
Five-Axis Precision in a Compact Footprint, Smart Manufacturing at Its Finest
True 5-axis simultaneous motion and 0.01 mm positioning accuracy bring precision machining to your desktop.
No million-dollar factory required. Bring five-axis machining to your desktop.
The GM130 makes five-axis CNC technology more accessible for training and education.
The full reference configuration — confirm spindle, tooling and workholding options for your application.
| Parameter | GM130 |
|---|---|
| Model | GM130 |
| Travel (X/Y/Z) | 300/140/140 mm |
| Travel (A/C) | ±90°/360° |
| Max workpiece size | Ø130×120 mm, load ≤10 kg |
| Spindle speed | 24,000 rpm |
| Tool clamping force | 6 kN |
| Positioning accuracy | 0.01 mm |
| Repeat positioning accuracy | 0.005 mm |
| Machine weight | approx. 230 kg |
| Machine dimensions | 860 × 1104 × 1064 mm |
| Control system | DEPU proprietary 5-axis CNC system |
| CAM Software | Chuixiang.AI |
| Coolant | Master Fluid Solutions cutting fluid |
| Lubrication | Internal centralized oil circuit |
| Total power | 3.5 kW |
The CNC system, spindle and rotary table are developed in-house — This allows the GM130 to maintain a compact footprint without compromising precision.
Programming multi-axis toolpaths usually requires expensive CAM licenses and a steep learning curve. Chuix AI is built natively for the GM130—it analyzes your 3D CAD model, calculates collision-free 5-axis toolpaths, and validates the cut with a digital twin simulation before the spindle ever turns. No manual G-code tweaking required.
DEPU's proprietary spindle is designed for the GM130 5-Axis Micro Machining Center and for precision engraving, milling, and other small-part machining applications. It features an 80 mm diameter, water cooling, an ISO 20 tool holder, Standard spindle speed: 24,000 rpm; 40,000 rpm option available. The spindle also supports automatic tool changing.
Equipped with an encoder, it enables precise spindle positioning and rigid tapping.
DEPU's proprietary rotary table features an A/C dual-axis cradle design, with an A-axis tilt range of ±130° and continuous 360° rotation on the C-axis. The table surface measures 130 mm in diameter and is compatible with five-axis machining of small precision workpieces.
From small parts to complex five-sided machining, here are some of the applications the GM130 is designed for.
From small precision parts to classroom projects, start by telling us the geometry, material, and results you need to achieve.
The GM130 is automatically added to your inquiry.
