5 Axis CNC Machines from Depu CNC

What is a 5 axis CNC machine?

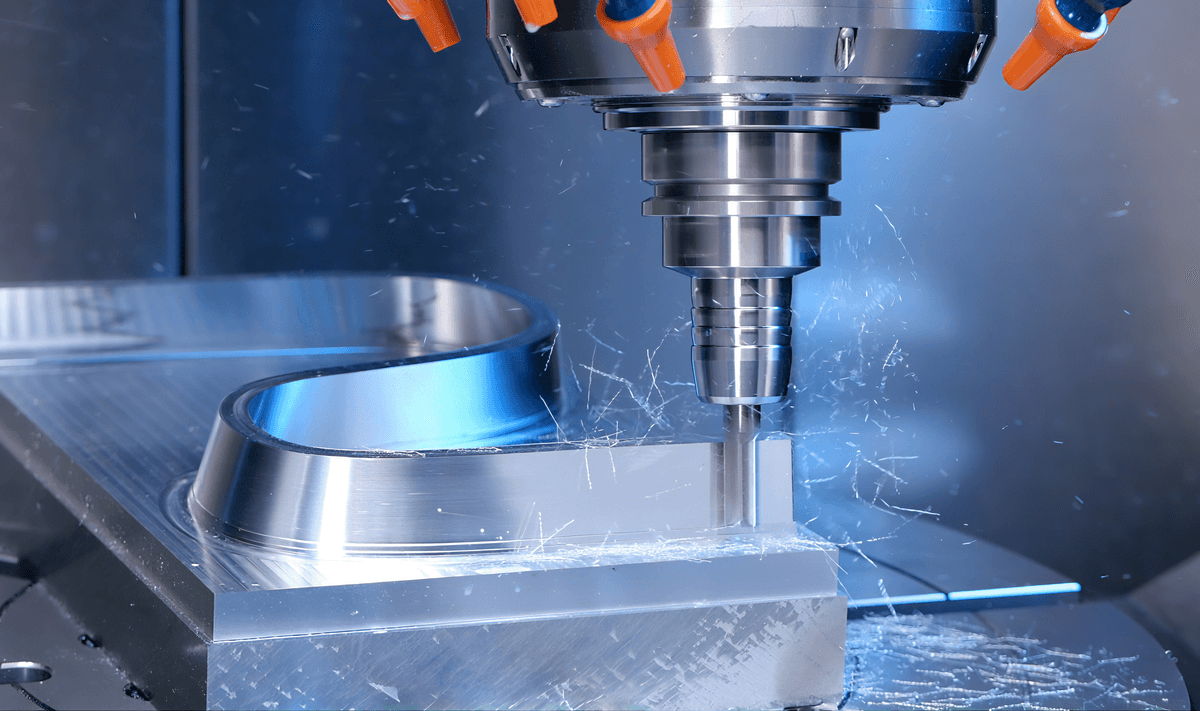

A 5 axis CNC machine is an advanced machining tool that moves a cutting tool or a workpiece across five different axes simultaneously. While a traditional machine moves in three linear axes, X, Y, and Z, a 5-axis machine adds two rotational axes, usually A and B, or B and C. This allows the cutting tool to approach the part from any direction, enabling the creation of extremely complex and intricate geometries.

How does a 5 axis CNC machine work?

The machine operates via a CNC system that follows a pre-programmed path, G-code. As the tool moves along the X, Y, and Z planes, the table or the spindle head tilts and rotates. This synchronized movement keeps the cutting tool perpendicular to the material surface or at a specific angle, which is essential for machining curved surfaces, deep cavities, and complex undercuts in a single setup.

Is a 5 axis CNC machine worth the investment?

Yes. While the initial cost is higher than 3-axis machines, the ROI is significant for most manufacturers.

• •Reduced Labor: It eliminates the need for multiple setups and manual re-fixturing.
• •Higher Precision: Fewer setups mean fewer alignment errors.
• •Faster Production: Complex parts are finished in a single operation.
• •Competitive Edge: It allows you to take on complex jobs in aerospace, medical, and other demanding fields that competitors cannot handle.

How to set up a 5 axis CNC machine?

A production-ready setup depends on foundation stability, calibration, workholding, software integration, and commissioning support.

• •Leveling & Grounding: Ensuring the machine is perfectly stable on the factory floor.
• •Calibration: Using laser interferometers and ball bars to calibrate the rotational centers and linear accuracy.
• •Workholding Installation: Setting up specialized vises or vacuum fixtures.
• •Software Integration: Syncing your CAM software with the machine's controller.
• •DEPU Support: We provide professional on-site installation and commissioning services to ensure your 5 axle CNC machine is production-ready from day one.

How to build a 5 axis CNC machine?

Building a reliable 5 axis machine requires high-rigidity structure, precision motion components, advanced control systems, and long-cycle validation.

• •High-Rigidity Casting: Using high-quality Meehanite cast iron for the machine base to dampen vibrations.
• •Precision Components: Integrating high-precision ball screws, linear guides, and direct-drive rotational tables.
• •Advanced Control Systems: Implementing high-speed CNC controllers capable of processing complex algorithms in real-time.
• •Rigorous Testing: Each DEPU 5 axis machine for sale undergoes hundreds of hours of stress testing and accuracy verification.
