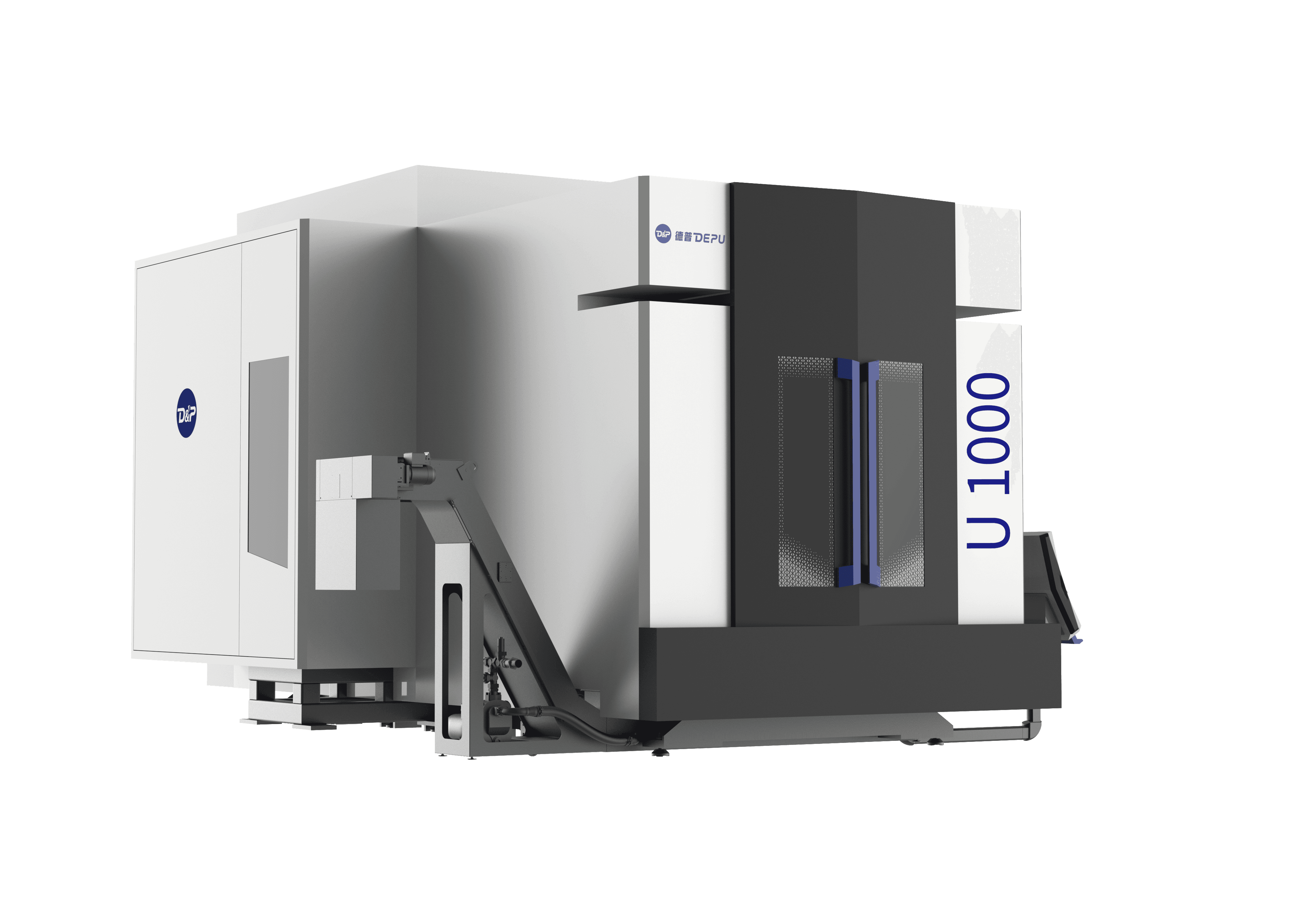

U1000
|
Technical parameters |
U1000 |
||
|
Scope of work |
X/Y/Z(mm) |
1000/1000/1000 |
|
|
B / C |
360°/ -30°~180° |
||
|
Distance between the end face of the spindle and the worktable (mm) |
200-1200 |
||
|
Distance from spindle center to worktable horizontal (mm) |
80-1080 |
||
|
Maximum workpiece size(mm) |
Φ1000xH1000 |
||
|
Table size (mm) |
Φ1000 |
||
|
Maximum load (uniform load) (kg) |
1800 |
||
|
Specification of T-shaped groove |
8-18 (uniform distribution) |
||
|
Equipment accuracy (Constant temperature and humidity) |
Positioning accuracy-X/Y/Z (mm) |
0.006 (Constant temperature and humidity) |
|
|
Positioning accuracy-B/C (") |
6 (Constant temperature and humidity) |
||
|
Repeatability-X/Y/Z (mm) |
0.005 (Constant temperature and humidity) |
||
|
Repeatability-B/C (") |
5 (Constant temperature and humidity) |
||
|
Feed speed |
Fast moving speed |
X/Y/Z (m/min) |
30 |
|
B/ C (rpm/min) |
30 /50 |
||
|
Spindle parameters |
Tool specification |
HSK-A100 |
|
|
Maximum speed (rpm) |
10000 |
||
|
Rated power (kw) |
50/70 |
||
|
Torque (S1/S6) (N. M) |
400/560 |
||
|
Tool magazine |
Capacity (PCs) |
40T |
|
|
Tool diameter (mm) |
110/200 |
||
|
Max. tool length (mm) |
350 |
||
|
Max. tool weight (kg) |
20 |
||
|
Weight |
Equipment weight (kg) |
约26000kg About kg 26000 |
|
|
Control System |
/ |
SIEMENS ONE |
|
|
Dimensions |
including accessories （mm） |
7100×8000×4300 |
|
Product Details
Motorized Spindle
Optional high-torque, high-speed motorized spindle configuration, with a maximum spindle speed of up to 10,000 rpm.
B-Axis Rotary Table
The B-axis rotary table features a wide guideway span and heavy-duty dedicated bearings. It is fully independently designed and manufactured, offering zero backlash, long service life, and exceptional load capacity.
Machining Area
Excellent accessibility and visibility within the machining area make workpiece and tool clamping fast and convenient, ensuring optimal operating comfort.
High-Precision Drive Components
Standard high-precision ball screws and roller linear guideways ensure outstanding rigidity and stability under high dynamic conditions.
Y-Axis
The triple-guideway structure enhances linear motion responsiveness and vibration damping performance.
T-Shaped Base
The T-shaped base structure adopts an integrated column and large cross-section beam design, delivering extremely high structural rigidity.
