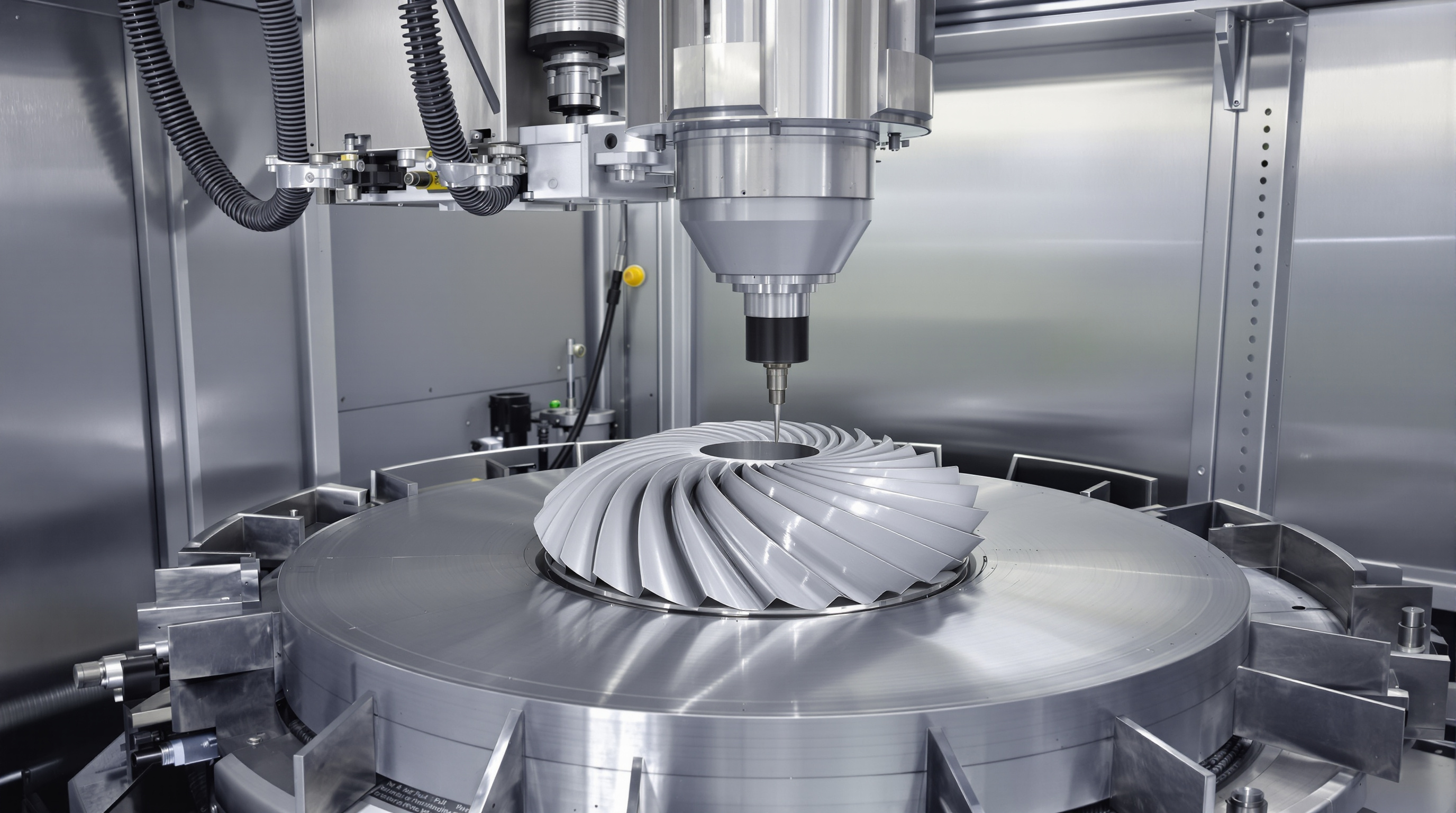

Core Mechanics and Motion Architecture of a 5-Axis CNC Mill
How 5-Axis CNC Machines Work: Integration of Linear (X, Y, Z) and Rotational (A, B) Axes
A 5 axis CNC mill works by combining straight line movements with rotation so it can create complicated shapes all in one go. The standard XYZ axes handle positioning the cutting tool left right, front back, and up down. Meanwhile the A and B rotational axes let the part itself rotate and tilt as needed. This means the machine can keep adjusting angles throughout the process, making it possible to reach those tricky undercuts, sloped areas, and detailed curves with incredible accuracy down to about 0.003 mm. Getting rid of the need for constant manual adjustments saves time too. Factories report cutting production cycles by around 40% when switching from regular 3 axis machines, something confirmed by research published last year in the Journal of Manufacturing Systems.
Understanding Axis Configurations: Head-Head, Table-Table, and Hybrid Kinematics
The distribution of rotational motion between spindle and table defines machine performance and application suitability:
- Head-Head (Tool-Centric): Both A and B rotations occur at the spindle head, offering maximum reach for large aerospace components where full surface access is critical.
- Table-Table (Workpiece-Driven): Rotary axes are integrated into the worktable, ideal for heavy parts up to 1,500 kg that benefit from stable fixturing.
- Hybrid: Combines a tilting spindle with a rotating table, balancing rigidity and flexibility for mid-sized production runs across industries like medical and automotive.
Hybrid configurations now represent 62% of new installations due to their adaptability and efficient use across diverse part types.
Work Envelope, Travel Limits, and Machining Volume Implications
The usable machining volume is determined by axis travel limits, which vary across premium models:
| Axis | Typical Range (Premium Mills) |
|---|---|
| X | 800—2,000 mm |
| Y | 500—1,500 mm |
| Z | 400—1,200 mm |
| A/B | ±120° continuous |
When parts are bigger than what fits comfortably in standard setups, we often need extra steps or special fixtures to handle them properly. The problem comes when machines try to work with really large envelopes because it actually weakens the whole structure. According to research from NIST back in 2022, running machines for too long causes heat buildup that can knock down Y axis accuracy somewhere around 15%. For anyone concerned about maintaining precision over time, it makes sense to size the machine's working area based on the biggest part they plan to make, plus throw in about 20% extra space just to be safe. Most experienced machinists will tell you this buffer zone saves headaches later on.
Spindle Performance and Thermal Stability in High-Speed 5-Axis CNC Milling
Optimal Spindle Speed Ranges for Precision Machining Across Materials
Spindle speed must be optimized based on material properties to balance tool life, surface finish, and heat generation:
| Material | Speed Range (m/min) | Thermal Sensitivity | Key Consideration |
|---|---|---|---|
| Titanium | 60—120 | High | Tool wear, heat dissipation |
| Aluminum | 200—400 | Moderate | Chip evacuation |
| Carbon Fiber Composites | 100—250 | Low | Delamination prevention |
For titanium alloys used in aerospace, lower speeds prevent excessive heat buildup that accelerates tool degradation. In contrast, aluminum benefits from higher speeds to improve chip removal and avoid built-up edge. Composite materials require moderate speeds to preserve fiber integrity without generating delamination.
Spindle Orientation Impact on Rigidity, Accessibility, and Tool Life
When working on deep cavity milling jobs, vertical spindles really stand out because they keep things stable and cut down on vibrations when removing materials aggressively.For contouring work, going horizontal makes tools last longer too about 18 to 22 percent according to tests following ISO standards. The reason? Gravity helps coolants flow better, which means chips get cleared away faster and machines stay cooler overall. Some shops are now using hybrid setups where tilt rotary tables come into play. These systems give great access to tricky shapes like those turbine blades we all deal with from time to time, yet still hold up mechanically without compromising strength.
Thermal Management and Power Output in Premium High-Speed Spindles
Keeping things cool is really important when dealing with those high speed spindles spinning past 20,000 RPM. The best setups have active cooling that keeps temperatures stable within about half a degree Celsius either way, which actually meets the ASME B5.64 guidelines. Without this kind of control, small temperature changes can throw off precision measurements completely. For cutting through tough materials like hardened steel, manufacturers need powerful motors rated between 80 to 100 kilowatts to maintain proper cutting force throughout operations. Ceramic bearings also make a big difference here since they generate around 30% less heat than traditional steel bearings do. And let's not forget about those smart thermal compensation systems that automatically tweak feed rates as jobs run longer. These adjustments help maintain that critical micron level accuracy even after machines have been running nonstop for over 12 hours straight.
Precision, Accuracy, and Structural Integrity in 5-Axis CNC Mill Systems
ISO Standards for Accuracy and Repeatability in 5-Axis CNC Milling
Top quality 5 axis milling machines can reach positioning accuracy down to less than 5 microns according to standards set by ISO 10791-7. These machines rely on thermal stability in their frame design combined with real time corrections to maintain such high levels of precision. When it comes to rotational axes, manufacturers follow guidelines from ISO 13041-8. The best equipment out there manages to stay within plus or minus 2 arc seconds even after running through 10,000 cycles. For those working in aerospace manufacturing, this kind of accuracy makes all the difference. Turbine blades can be produced with surface finishes as tight as 0.005 mm, which means many parts no longer require additional polishing after machining. This saves both time and money while still meeting strict quality requirements.
Machine Calibration, Probing Systems, and Long-Term Consistency
The first step in setting up these systems involves calibrating laser interferometers to establish accurate geometric baselines. At the same time, built-in probing systems take care of measuring tool lengths automatically and compensate for wear approximately every 15 to 30 hours of operation. What's really impressive is how ceramic bearing rotary tables keep their positioning accuracy within plus or minus 1 micrometer even after thousands of operating hours. A recent report from NIST back in 2023 showed something pretty significant too machines with volumetric error compensation cut down on dimensional drift by around two thirds during those long 72 hour test periods when compared against regular equipment without such features.
Vibration Damping, Frame Rigidity, and Dynamic Stability Under Load
Machine bases made from polymer concrete can soak up around 85 percent of those pesky high frequency vibrations between 40 and 200 Hz, which makes all the difference when it comes to getting better surface finishes. When manufacturers design frames with finite element analysis techniques, they manage to keep stiffness at or below 3 micrometers per meter even when machines experience 20 G forces during fast contouring operations. The real magic happens with hybrid guideways that mix hardened steel components with synthetic diamond coatings. These setups let machines run at impressive speeds of up to 800 millimeters per second without any annoying chatter problems. And this matters a lot because achieving those super smooth finishes below 5 Ra is absolutely critical for making precision parts like titanium medical implants where every detail counts.
Evaluating Real-World Performance vs. Manufacturer Specifications
Independent testing shows that only 18% of machines consistently exceed advertised accuracy under thermal load (NIST 2022). To validate performance, operators should assess:
- Thermal drift: Measure positional variance after a 4-hour warmup versus cold start
- Rotational accuracy: Use hemispherical artifact cuts to test B-axis repeatability
- Dynamic rigidity: Evaluate surface quality at 60%, 80%, and 100% of maximum RPM
Manufacturer claims should always be verified through third-party benchmarking for mission-critical applications.
Workholding, Load Capacity, and Rotary Axis Dynamics
Maximum Table Load and Its Influence on Part Size and Material Options
The amount of weight a worktable can hold really affects what kinds of materials get machined properly. Take a 5-axis mill that handles around 3,000 pounds (about 1,360 kilograms). These bad boys can tackle tough stuff like titanium or Inconel without messing up the precision. But if the machine isn't built for heavy duty work, it'll struggle with anything beyond basic aluminum or small parts. Some studies looking at how weight gets spread across big machining setups show something interesting too. When operators push past the suggested weight limits, the Z-axis starts making bigger mistakes in geometry measurements. We're talking about errors climbing as high as 12% because the machine frame actually bends under the pressure.
Torque, Speed, and Balance in A and B Rotary Axes for Complex Contours
The performance of rotary axes really comes down to finding the right balance between torque measured in Newton meters (Nm) and how fast things spin, which we measure in revolutions per minute (RPM). When working with tough materials like hardened steel, having high torque matters a lot. Take those 450 Nm drives for instance they keep everything steady during cutting even when speeds are low. But if we're dealing with lighter stuff like aluminum components, then speed becomes king. These parts need quick indexing movements, often above 200 RPM to get the job done right. And let's not forget about imbalance issues. If there's more than 0.5 grams millimeter per kilogram out of whack, tools start deflecting anywhere from 18% to 22%. This gets especially problematic when machining deep pockets in materials. We've seen this happen time and again in our workshops, so it's definitely something worth keeping an eye on during setup.
Fixturing Strategies for Maximizing Uptime and Minimizing Repositioning
Modular clamps, magnetic chucks, and tombstone fixtures reduce non-cut time by 30—40% in multi-sided machining. Vacuum workholding achieves 0.005 mm flatness tolerance across large aluminum plates (24"x48"), reducing setup variability. For high-volume production, automatic pallet changers minimize handling errors by 67% compared to manual loading, according to the 2023 CAM Software Benchmark Report.
Control Systems, Automation, and Future-Ready 5-Axis CNC Capabilities
Modern 5-axis CNC mill performance depends on advanced control systems and seamless automation integration. These capabilities are increasingly vital for competitiveness in aerospace, medical device manufacturing, and energy sectors requiring tight tolerances and digital traceability.
Advanced CNC controls and seamless CAD/CAM software integration
High-end CNC controls cut programming time by 35% through direct translation of CAD/CAM files (Machinery Today 2024). Systems with native compatibility automatically optimize toolpaths based on material hardness and feature geometry, reducing manual input. Virtual simulation of entire machining sequences prevents costly trial runs and identifies inefficiencies before cutting begins.
Collision detection, tool path simulation, and risk mitigation tools
Real-time collision avoidance algorithms analyze all five axes plus auxiliary motions (totaling 12-axis kinematics), reducing crash-related downtime by 90% in complex setups. Micron-resolution simulation visualizes interactions between workpiece, fixture, and tool, enabling preemptive correction of interference risks.
Adaptive machining with real-time feedback and sensor integration
Smart 5-axis mills utilize 9-axis sensor arrays monitoring force, temperature, and vibration to dynamically adjust feed rates and spindle torque. During extended titanium machining cycles, this adaptive control maintains ±0.005 mm accuracy over 18 hours without operator intervention, compensating for progressive tool wear.
Open vs. proprietary control systems: Flexibility vs. optimization debate
| System Type | Customization Potential | Optimization Level | Update Cycle |
|---|---|---|---|
| Open Architecture | High (supports third-party plugins) | Moderate | Quarterly |
| Proprietary | Limited | Peak performance | Biannual |
Open systems allow custom macro development for niche processes, while proprietary platforms deliver 15% faster cycle times via tightly integrated hardware-software tuning.
AI-driven optimization and smart factory readiness in modern 5-axis mills
Machine learning models trained on terabyte-scale production data predict spindle bearing failures up to 400 operating hours in advance. Combined with OPC-UA protocol support, this predictive maintenance capability integrates 5-axis mills into smart factory ecosystems, enabling real-time monitoring, remote diagnostics, and autonomous process adjustments.
