Case 03Read the full case
Lamp molds and impellers on the U1000
Reflector surfaces and deep filter cavities finished on a cradle table — without a hand-polish step.
32 h → 9 h
Ra 0.2 µm
A ±120° / C 360°
Five-axis applications
5G & Telecom
Large filter cavities are deep and feature-dense — a typical alternative is a vertical mill plus a rotary table. The U-series cradle structure instead opens cavities, narrow slots and threads in one setup, without re-clamping between operations.
Discuss your application
01 / Applications
What we machine.

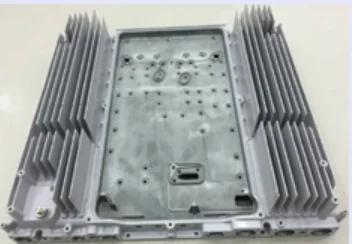

Filter cavities
Deep cavity, narrow slot and thread features combined in one die-cast part.
Heat-sink plates
Dense rib fields finished at high spindle speed.
RF housings
Multi-face die-cast housings completed in a single setup.
02 / Materials
Die-cast aluminium
04 / Processes & geometry
Deep cavities, long overhangs
Vibration-damped boring holds 8:1 length-to-diameter bores inside deep cavities.
Deep ribs and narrow slots
Trochoidal roughing with radial-depth control; taper compensation for slot walls.
05 / Case study
More industries
Bring the part. We'll bring the process.
Tell us the geometry, material and tolerance — we'll map it to a platform and a first-pass process.
