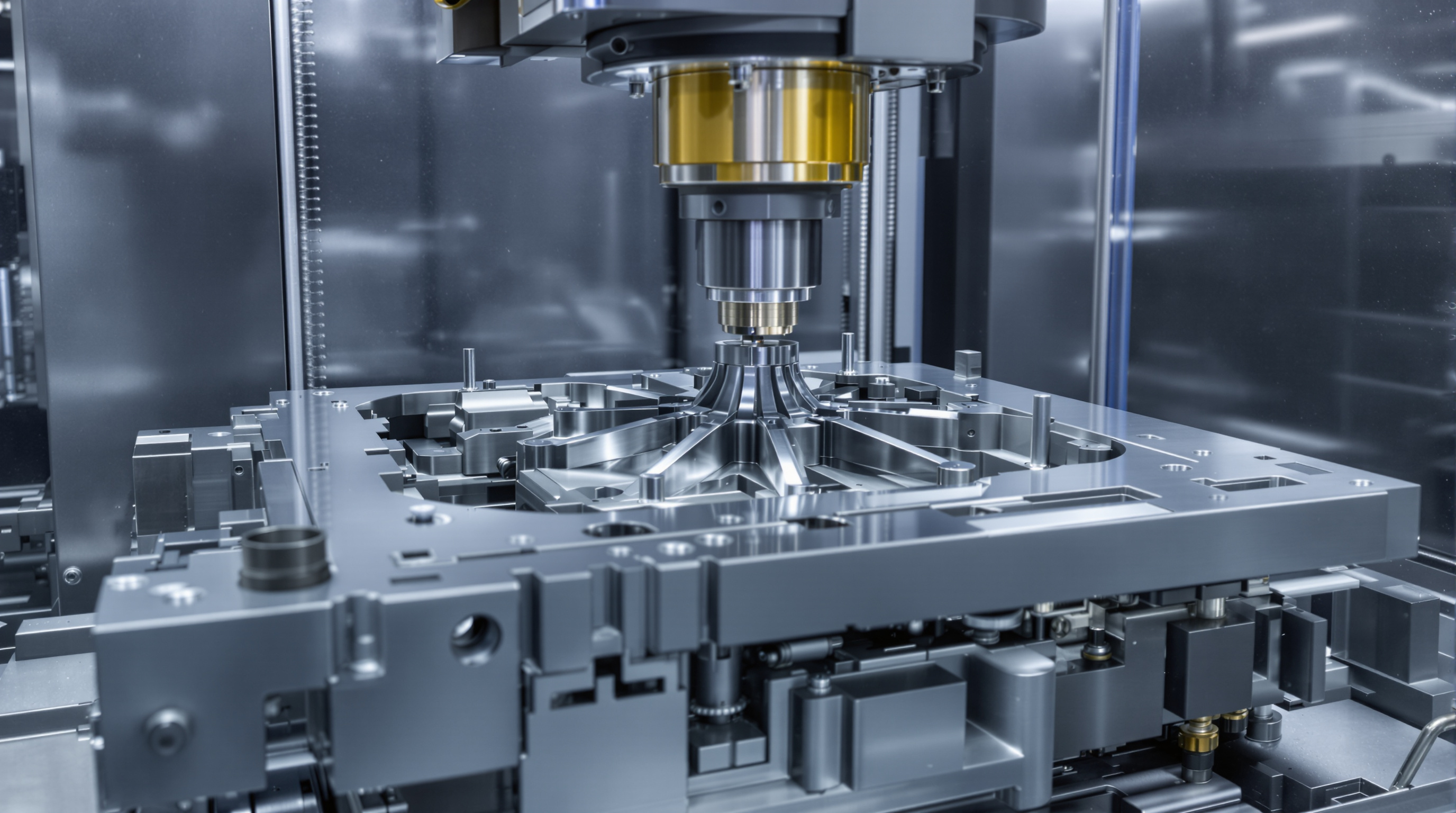

Understanding 5-Axis CNC Machining in Automotive Mold Development
Why Automotive Molds Demand High Precision and Complexity
For automotive molds, getting those tolerances below 20 microns is pretty much essential if we want consistent parts across the board. Components such as cylinder heads, intake manifolds, and even lighting housings demand this level of precision. The problem comes when dealing with complex shapes like angled cooling channels, really thin walls, and those smooth aerodynamic surfaces. Standard 3-axis systems just can't handle these demands anymore. When things go wrong, what typically happens? Flash defects appear, walls end up too thick in some spots and too thin elsewhere, and parts sometimes fail way before their time. Looking at recent research from 2023 about manufacturing tech, it turns out almost 60% of all issues with automotive molds actually trace back to poor machining accuracy. That statistic alone makes a strong case for why manufacturers are increasingly turning to 5-axis CNC machines with their better control over three dimensional space.
How 5-Axis CNC Enables Single-Setup Machining of Complex Geometries
By rotating the workpiece or cutting tool across two additional axes, 5-axis CNC machines eliminate manual repositioning for undercuts, draft angles, and contoured surfaces. This reduces setup changes by up to 70% compared to 3-axis systems, as shown below:
| Parameter | 3-Axis Machining | 5-Axis CNC Machining |
|---|---|---|
| Average setups per mold | 4–6 | 1 |
| Tool reach limitations | High | Minimal |
| Cycle time reduction | Baseline | Up to 40% |
Continuous toolpath optimization maintains consistent tool engagement, minimizing vibrations and preserving surface quality.
Integration with Digital Twin and CAD/CAM for Smarter Mold Design
The latest 5 axis workflow combines CAD CAM programs with digital twin tech so engineers can test how molds will perform before actually cutting metal. With these tools at their disposal, professionals are able to foresee issues like heat warping, coolant distribution problems, and force calculations during ejection. This has cut down on prototype cycles by around 30 something percent according to recent studies. When making real time changes to cutting paths using simulation feedback, precision improves dramatically. The benefits are particularly noticeable when dealing with tough stuff like H13 tool steel or those tricky composite materials that mix plastic with reinforcing fibers.
Accelerating Prototyping Cycles with 5-Axis CNC Technology
The automotive industry’s push for faster development timelines has made 5-axis CNC a cornerstone of rapid prototyping. Its multi-directional tool access and seamless CAD/CAM integration enable functional prototypes that closely mirror final parts, accelerating design validation.
Rapid Iteration of Functional Prototypes for Automotive Components
The biggest advantage of 5-axis CNC machines is they eliminate all that tedious manual repositioning work. Engineers can now tackle intricate parts such as intake manifolds or transmission housing components without constantly adjusting positions. A recent study from the Automotive Manufacturing Association shows something pretty impressive too. Teams working with these advanced systems cut down on prototype iterations by almost two thirds according to their findings. Take cylinder heads for example. What used to take eight long hours in the workshop is now done in just two. That kind of time savings makes a world of difference when deadlines are tight and competition is fierce in automotive R&D departments across the country.
Precision, Speed, and Flexibility in Low-Volume Prototype Runs
Car manufacturers still want parts made to within 0.01 mm even when they're only making small batches. This kind of tight tolerance gets achieved consistently thanks to 5 axis CNC machines that keep adjusting their cutting paths as they work. Looking at data from industry reports in 2024 showed something interesting too: companies saved around 40 percent less material waste when producing molds for brake calipers using these advanced techniques. For materials like high strength aluminum that many shops struggle with, this level of accuracy makes all the difference. Traditional machining approaches tend to cause problems like vibration marks and part deformation which nobody wants to see in final products.
Comparing 5-Axis CNC and Additive Manufacturing in Automotive Prototyping
Additive manufacturing works really well for making hollow parts and those complex lattice structures, but when it comes to getting that nice smooth finish and solid build quality, nothing beats 5-axis CNC machining. According to some research from last year's Prototyping Benchmark Study, they found that ABS sensor housings made on CNC machines ended up with about 32 percent fewer issues needing fixing after production compared to their 3D printed counterparts. The industry is starting to see value in combining both methods though. Most top tier suppliers actually start with additive manufacturing just to get a quick prototype going, then switch over to CNC once they need something that will actually work properly during testing phases.
Optimizing Production Efficiency for High-Volume Mold Manufacturing
Reducing Setup Time and Cycle Duration in Mold and Die Production
The 5 axis CNC machines basically remove the need for all that tedious manual repositioning work because they keep the tool touching the material continuously even on those really complicated shapes. Setup times drop dramatically compared to traditional 3 axis systems somewhere around half to three quarters less actually. When it comes to multi cavity molds, the difference is night and day. Take a hardened steel die with twelve cavities for car trim parts for instance what used to take four separate clamping cycles can now get done in just one operation. This kind of efficiency boost has real world implications too. Major automotive suppliers have seen their mold delivery times improve by about 28 percent according to last years Automotive Tooling Benchmark report.
Balancing Upfront Investment with Long-Term ROI in 5-Axis Systems
Although 5-axis machines require a 30–40% higher initial investment, their return becomes clear within 18–24 months through reduced labor and scrap. A 2024 die-casting industry analysis revealed that shops operating over 10,000 annual mold hours achieve 22% lower per-unit costs after adopting 5-axis platforms.
Automation and Workholding Innovations for Scalable Output
Robotic pallet changers along with smart vises make it possible to run machines overnight without supervision, working on everything from aluminum prototypes right through to serious production grade steel tools. Add in some good adaptive coolant systems too, and factories see around half again fewer interruptions in their cycles. This matters a lot when trying to keep those tight ±0.01 mm specs over long periods of polishing work. The real game changer though comes from those advanced path planning algorithms. Shops report getting close to 9 out of 10 hours actually productive time on their machines even during peak production runs, which makes all the difference in competitive manufacturing settings.
Achieving Superior Precision and Surface Finish in Automotive Molds

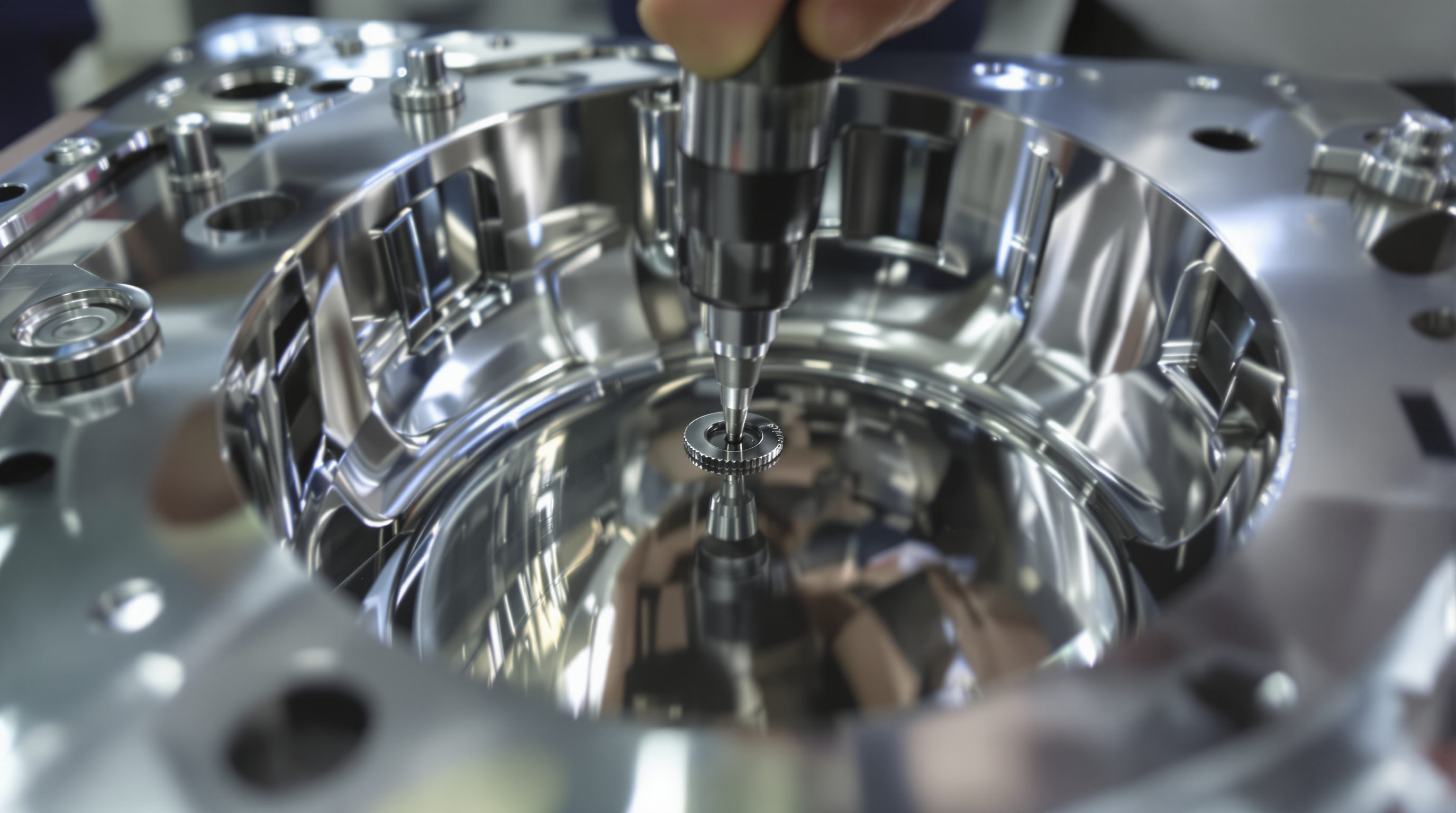

Delivering Mirror-Finish Cavities with Continuous Tool Path Optimization
5-axis CNC achieves surface roughness below Ra 0.4 µm in mold cavities by maintaining optimal tool engagement angles (NIST 2023). Unlike 3-axis systems, simultaneous 5-axis motion avoids visible witness marks at direction changes. Advanced CAM software enables:
- 95% stepover consistency across curved surfaces
- Automatic spindle speed adjustments for hardened steels (50–55 HRC)
- 60% less manual polishing than traditional milling
Ensuring Dimensional Accuracy Across Complex Mold Surfaces
Thermal compensation algorithms counteract heat-induced tool elongation, sustaining ±0.0127 mm positional accuracy over 12-hour runs. For undercut-heavy molds like HVAC vents, 5-axis systems achieve 99.7% first-pass compliance through:
- Real-time probe verification of critical features
- Adaptive milling strategies for draft angles under 0.5°
- Automated collision detection in deep cavity zones
Case Study: 40% Faster Mold Development at a Tier-1 Automotive Supplier
A 2024 industry analysis showed how 5-axis CNC reduced a headlight lens mold’s lead time from 34 to 20 days. The system enabled direct machining of:
- 7 independent sliding cores in one setup
- 0.02 mm radius details for light diffusion patterns
- Ra 0.8 µm textured surfaces meeting Class A standards
This eliminated three secondary operations and cut scrap costs by $18k per mold compared to prior 3-axis processes.
FAQs
What are the benefits of using 5-axis CNC machines in automotive mold development?
5-axis CNC machines offer high precision and complexity control, enabling the creation of molds with tolerances below 20 microns. They support faster prototyping cycles, reduce setup times, eliminate manual repositioning, and ensure superior surface finish in molds.
How does 5-axis CNC machining compare to additive manufacturing?
While additive manufacturing is excellent for creating hollow parts and complex structures, 5-axis CNC machining is superior for achieving smooth finishes and solid build quality, offering fewer production issues.
What is the effect of 5-axis CNC on material waste during mold production?
Automotive manufacturers have observed 40% less material waste, reduced vibration marks, and minimized part deformation when using 5-axis CNC machines for mold production.
What are the upfront costs versus long-term returns of investing in 5-axis CNC machines?
Although the initial investment is 30–40% higher, 5-axis CNC machines' returns become evident within 18–24 months through reduced labor and scrap costs.
