Specification Parameters
Working Range |
X/Y/Z Travel (mm) |
820/600/570 |
|
|
A/B Rotation |
360° / ± 90° |
|||
Spindle Nose-to-Table Distance (mm) |
100-670 |
|||
Max. Workpiece Size (mm) |
800*600 |
|||
Spindle Nose-to-Table Distance (mm) |
100-670 |
|||
Table Size (mm) |
1000*550 |
|||
Max. Load Capacity (Uniform) (kg) |
500 |
|||
|
Accuracy (ISO 230-2:97)
|
Positioning Accuracy - X/Y/Z (mm) |
0.008 |
||
Positioning Accuracy - A/B (arcsec) |
20/8 |
|||
Repeatability - X/Y/Z (mm) |
0.005 |
|||
Repeatability - A/B (arcsec) |
10/5 |
|||
Feed Rates |
Rapid Traverse - X/Y/Z (m/min) |
X/Y/Z (m/min) |
48/48/30 |
|
A / B (rpm/min) |
100/30 |
|||
Cutting Feed |
X/Y/Z (m/min) |
0-12 |
||
A / B (rpm/min) |
12 |
|||
Spindle Parameters |
Tool Interface |
HSK-A63 |
||
Max. Speed（rpm/min) |
18000 |
|||
Power（kw） |
30 |
|||
Rated Torque（S1/S6）(N.m) |
72/85 |
|||
Tool Magazine |
Capacity（pcs） |
24T |
||
Physical Specs |
Machine Weight（kg） |
6000 |
||
Control System |
/ |
Siemens 840D sl |
||
Automation Options |
Tool Measurement System |
选配 |
||
Optical Probe |
选配 |
|||

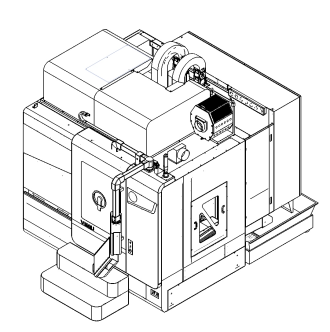

Product Details
1.Heavy-duty C-frame vertical structure
Adopts heavy-duty C-frame vertical structure, reasonably combined with a single-arm swivel head, optional A-axis or C-axis to form 5-axis linkage;
2.Optional Heidenhain absolute encoder
Optional Heidenhain high-precision absolute encoder provides real-time measurement of servo axis position for high-precision machining;
3.Uses ductile iron QT550
Moving components for dynamic cutting adopt ductile iron QT550 to ensure optimal dynamic rigidity and vibration resistance, providing stable high precision for machining;

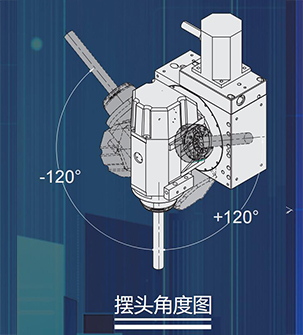

4.High-rigidity B-axis swivel head
Self-developed high-precision, high-rigidity roller cam single-arm 5-axis swivel head with continuous cutting torque up to 1560N·m;
5.High-torque, high-speed electric spindle
Standard high-torque, high-speed electric spindle with maximum speed of 18000rpm and maximum torque of 85N·m, delivering high-precision and superior surface finish workpieces;
6.Roller cam mechanical A-axis (optional C-axis)
Self-developed high-precision, high-rigidity, zero-backlash roller cam mechanical 4th axis ensures cutting force and accuracy, with optional C-axis configuration;
7.High-precision imported transmission components
Three linear axes feature standard Swedish SKF precision-grade guideways (P-class) and Japanese NSK high-precision ballscrews (C3-grade), enabling accurate positioning while enhancing wear resistance, impact resistance and machine tool service life.
