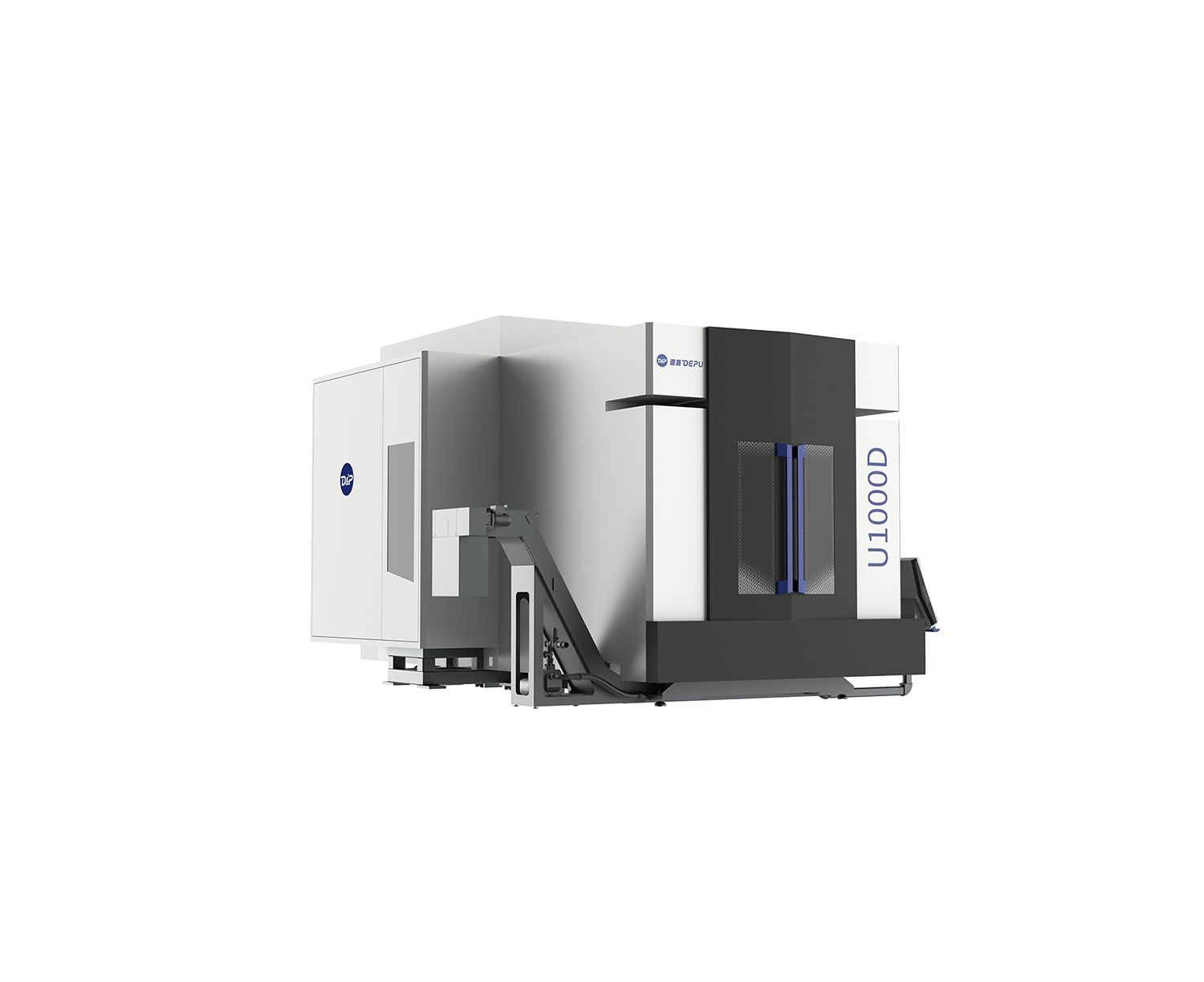

U1000D
Specification parameters
|
Working Range |
X- / Y- / Z (mm) |
1000/1250/1000 |
|
|
B / C (°) |
-15-+180/360 |
||
|
Max. Workpiece Dimensions (mm) |
Φ 1000*900 |
||
|
Max. Load Capacity (Uniform) (kg) |
1800 |
||
|
Rapid Traverse |
X/Y/Z(m/min) |
48 |
|
|
B / C (rpm/min) |
35/12 |
||
|
Spindle Parameters |
Tool Interface |
HSK-A100（optional HSK-A63） |
|
|
Max. Speed（rpm) |
10000/12000(optional) |
||
|
Power（kw) |
40/25（optional） |
||
|
Torque（S1/S6）(N.m) |
200/300（optional 130/100） |
||
|
Tool Magazine |
Capacity (T) |
40/60 |
|
|
Max. Tool Length/Weight |
mm |
400/15 (optional 300/8) |
|
|
Machine Weight (kg) |
Kg |
20000 |
|
|
Dimensions (mm) |
mm |
3250 |
|
|
Footprint (W×L) |
mm |
5300x5200x3600 |
|
|
|
|
|
|
Product Details
Electric Spindle
High-precision electric spindle configuration with optional 50KW power and up to 12000rpm maximum speed.
C-Axis Rotary Table
The C-axis rotary table features wide guide rail span and heavy-duty specialized bearings, fully independently designed and manufactured with zero backlash, long service life, and exceptional load capacity.
Machining Area
Excellent machining area accessibility and visibility, enabling quick and easy workpiece/tool clamping for optimal operator comfort.
High-Precision Drive Components
Standard high-precision ball screws and roller linear guides ensure outstanding rigidity and stability under high dynamic conditions.
Y-Axis
Triple-guide structure enhances linear motion responsiveness and vibration damping capability.
T-Shaped Base
T-shaped base construction with monolithic column and large cross-section beam provides extreme structural rigidity.
