Simultaneous 5-Axis Machining in Precision Manufacturing

Simultaneous 5-axis machining represents the pinnacle of CNC technology, enabling the cutting tool and workpiece to move concurrently along five axes, three linear (X, Y, Z) and two rotational (typically A and C or B and C). This continuous, synchronized motion allows the tool to maintain optimal orientation relative to the workpiece surface throughout the entire operation, unlike 3+2 positional machining where rotary axes are locked during cutting.

In simultaneous 5-axis operations, the machine executes complex toolpaths where all axes interpolate smoothly. Advanced CNC controls with features like RTCP (Rotational Tool Center Point) and sophisticated kinematics compensation ensure precise coordination, compensating for mechanical dynamics and thermal effects in real time. This capability transforms how manufacturers approach intricate geometries, delivering superior results in efficiency, accuracy, and surface quality.

Core Advantages

The most significant benefit is single-setup machining of complex parts. Traditional 3-axis or even 4-axis processes often require multiple fixturing operations to access different faces or angles. Each repositioning introduces alignment errors, accumulates tolerances, and increases labor time. Simultaneous 5-axis eliminates most of these setups, allowing nearly the entire surface of a part, including undercuts, compound curves, and organic shapes, to be machined in one clamping. This dramatically reduces cycle times and improves repeatability.

Superior surface finishes emerge naturally from continuous tool engagement. By keeping the cutter at the ideal angle, often using the side of the tool rather than just the tip, vibration decreases, tool deflection minimizes, and scallop heights reduce. Parts often exit the machine with finishes that require little to no secondary polishing, saving time and cost while enhancing fatigue resistance in critical components.

Enhanced tool life and cutting performance follow from shorter, more rigid tooling. The machine can tilt and rotate to avoid collisions or deep reaches, permitting aggressive parameters without chatter. Heat dissipation improves, and cutting forces distribute more evenly, extending insert or end mill longevity, especially when processing tough materials like titanium, Inconel, or hardened steels.

Greater design freedom empowers engineers. Simultaneous 5-axis supports part consolidation, where multi-piece assemblies become monolithic components. This reduces weight, improves structural integrity, and lowers assembly costs, advantages highly valued in weight-sensitive industries.

Accuracy also benefits from fewer setups. Feature-to-feature relationships remain tighter because the part stays fixed in the same coordinate system throughout machining. Modern machines with high-resolution encoders, direct-drive rotary tables, and thermal compensation deliver consistent micron-level precision even during long runs.

Key Applications

Simultaneous 5-axis machining excels in sectors demanding high complexity and tight tolerances. Aerospace manufacturers use it for turbine blades, impellers, structural brackets, and engine casings. The technology handles swept surfaces and thin walls while maintaining aerodynamic profiles and balancing requirements.

In medical device production, it creates custom implants, prosthetics, and surgical instruments from biocompatible materials. Organic, patient-specific geometries require the smooth, continuous motion that only simultaneous 5-axis can reliably deliver.

Automotive and mold & die industries leverage the speed for complex tooling, conformal cooling channels, and high-performance engine components. Energy and defense sectors apply it to precision rotors, housings, and specialized prototypes.

DEPU Reliable Simultaneous 5-Axis Performance

Leading manufacturers turn to advanced solutions like those from DEPU, a specialist in high-end 5-axis CNC machining centers. Established in 2021 with a core team boasting over 20 years of machine tool R&D experience, DEPU serves Fortune 500 companies with precision-focused equipment and comprehensive manufacturing support.

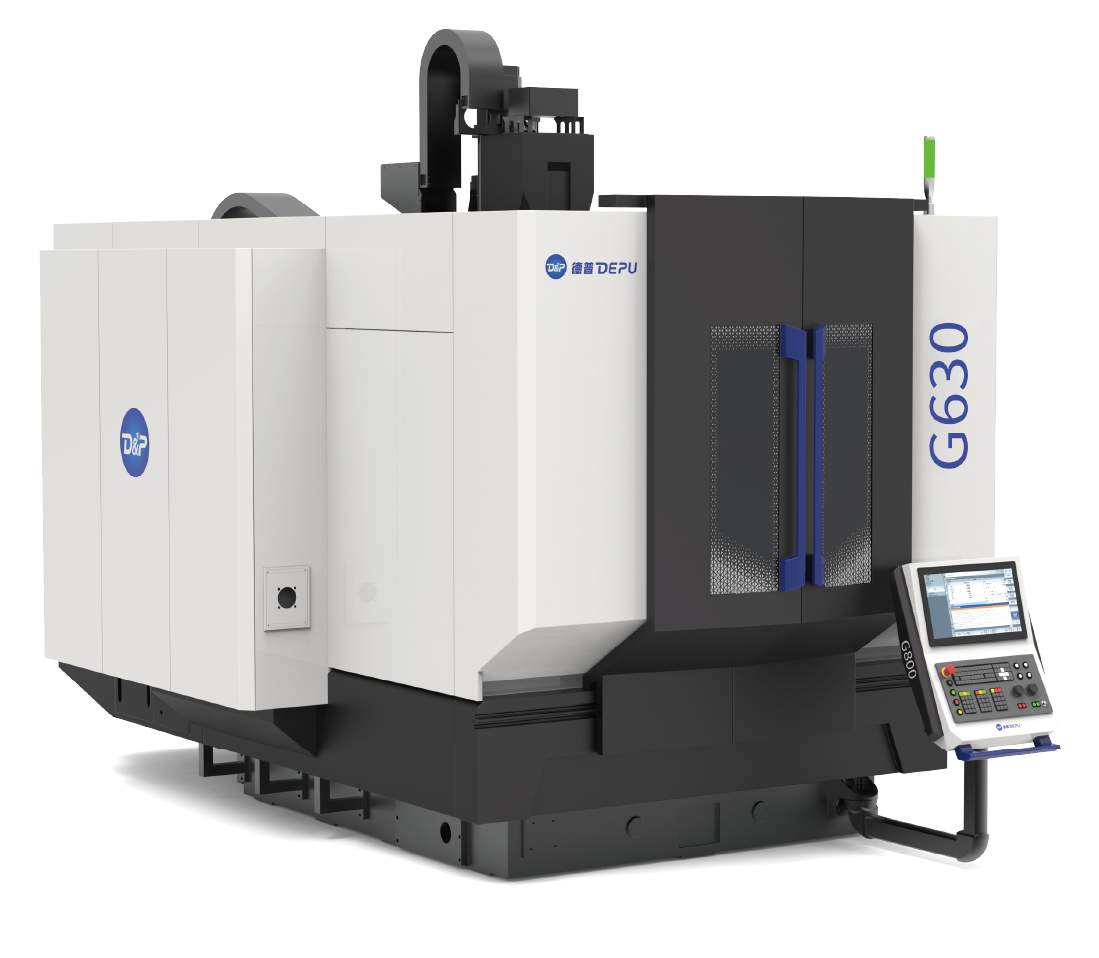

The G630 High-Speed 5-Axis Machining Center exemplifies DEPU’s commitment to simultaneous machining excellence. Built on a rigid gantry structure using high-quality HT300 cast iron, the G630 features a dual-supported cradle rotary table with direct-drive motors and Heidenhain feedback systems. Its A-axis (+30° to -130°) and C-axis (360°) enable full simultaneous contouring, while the 24,000 rpm HSK-E63 spindle (40 kW, significant torque) supports high-efficiency roughing and finishing in one setup.

With travels of 650/650/500 mm, a Ø630 mm table (850 kg load capacity), rapid traverses up to 45 m/min, and standard Siemens CNC with RTCP, the G630 delivers the dynamic response and precision needed for demanding simultaneous operations. Features such as dual-ball-screw Y-axis drive, precision roller guides, full closed-loop control with 10 nm resolution encoders, and advanced spindle cooling ensure thermal stability and lasting accuracy during continuous multi-axis motion.

Operator-friendly design includes double-opening doors, large viewing windows, and effective chip and mist management. Optional probing, tool setting, and automation integrations further enhance productivity for high-mix production. DEPU’s G Series, including models like the G300 and G800, targets automotive, aerospace, and mechanical engineering applications requiring precision molds and complex components.

As Industry 4.0 progresses, simultaneous 5-axis machines integrate with automation, real-time monitoring, and AI optimization. Hybrid additive-subtractive processes and digital twins further expand possibilities.

For manufacturers seeking competitive edges in quality, speed, and innovation, simultaneous 5-axis technology is indispensable. Solutions from forward-thinking fifth axis CNC providers like DEPU make this advanced capability accessible and reliable, driving the next generation of precision components across global industries.
