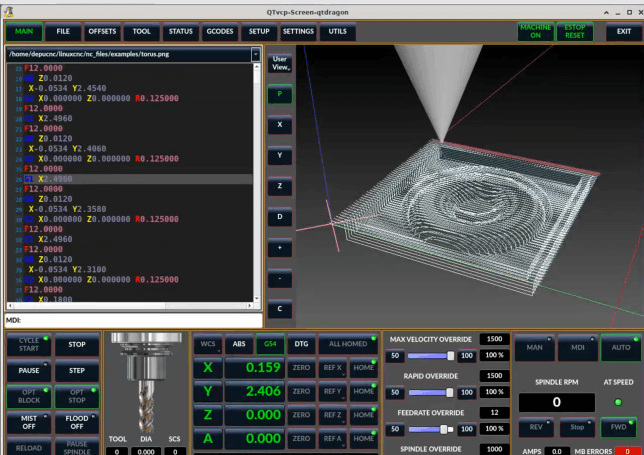

DEPU's proprietary five-axis CNC system
A self-developed CNC system built for precise five-axis control in compact desktop machining workflows.

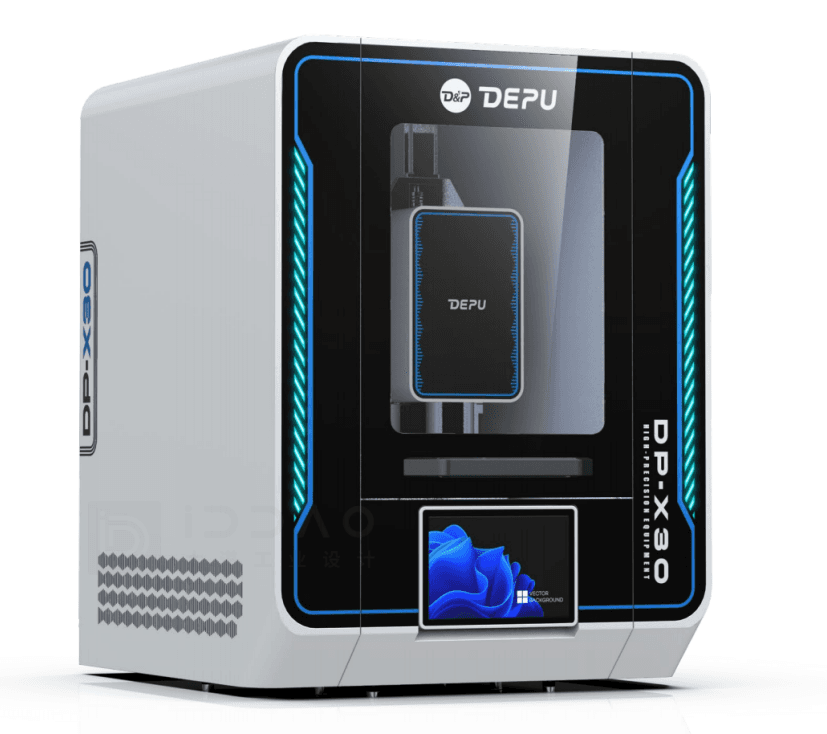

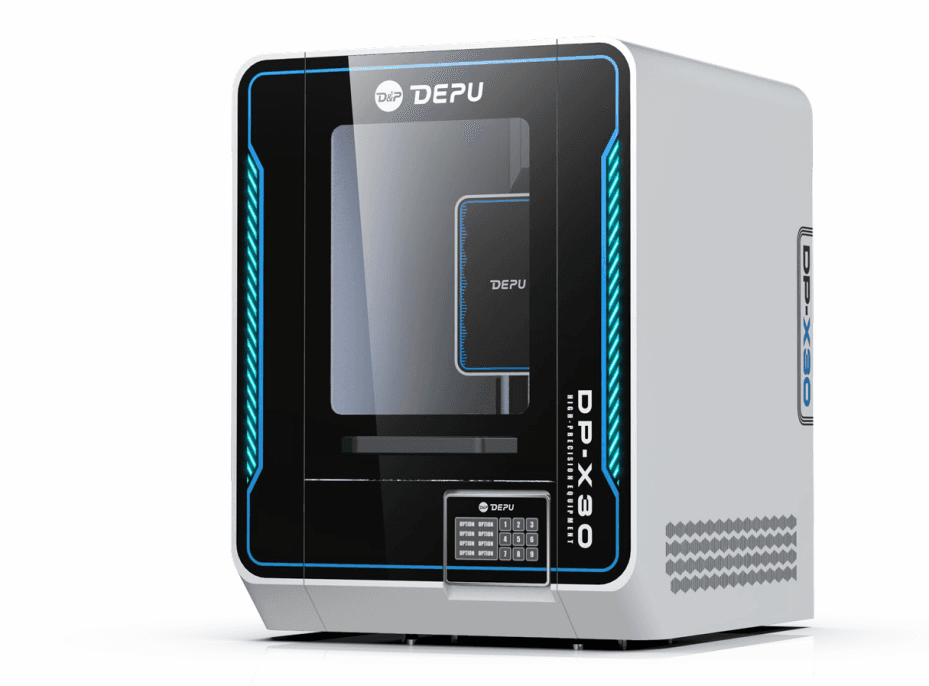

X30 5-axis Micro Machining Center
X30
Unlock the infinite possibilities of X30 5-axis Micro Machining Center in a compact space
Five-Axis Precision in a Compact Footprint, Smart Manufacturing at Its Finest
1
True 5-axis simultaneous motion with 0.01mm precision brings precision manufacturing to your desktop
2
No need for a million-dollar factory. Turn your creative ideas into reality with just a desk
3

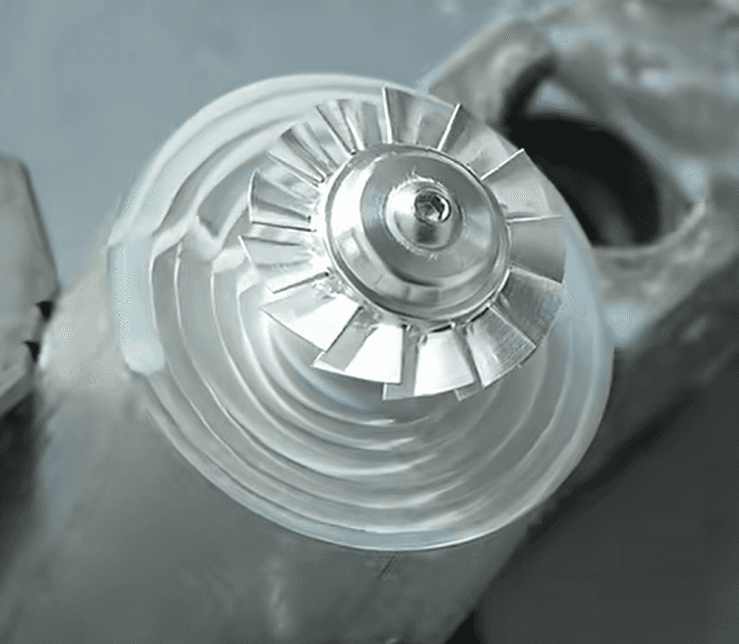

X30 5-axis Micro Machining Center makes learning CNC technology more intuitive and efficient
Product Specifications Model X30
| Model | X30 |
|---|---|
| Travel (X/Y/Z) | 300/140/140 mm |
| Travel (A/C) | ±130/360° |
| Max workpiece size | Φ130×120 mm, load ≤10 KG |
| Spindle speed | 24000 rpm |
| Positioning accuracy | 0.01 mm |
| Repeat positioning accuracy | 0.005 mm |
| Machine weight | 150 KG |
| Machine dimensions | 750×820×970 mm |
| Control system | Self-developed control system |
| Total power | 3.5 KW |
Major Components

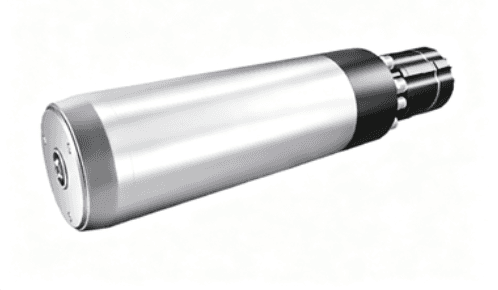

High-precision electric spindle
DEPU's proprietary spindle is designed for X30 5-axis Micro Machining Center, precision engraving and milling, and small machining centers. It features a diameter of φ80, water cooling, an ISO 20 tool holder, and a maximum speed of 40,000 rpm, making it a high-precision electric spindle with automatic tool change.
Equipped with an encoder, it enables precise spindle positioning and rigid tapping.

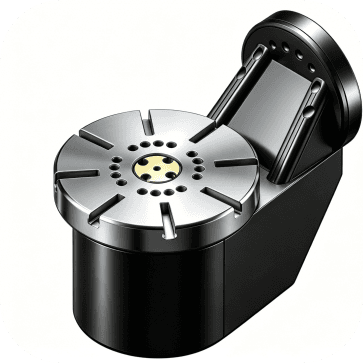

A/C dual-axis cradle rotary table
DEPU's proprietary rotary table features an A/C dual-axis cradle structure, with a large A-axis swing angle of ±130° and continuous 360° rotation on the C-axis. The table surface has a diameter of φ130 mm and is compatible with five-axis machining of small precision workpieces.
Application Scenarios
Jade
Machine Parts
Education
Medical Field
